Mounting an unrecognized internal disk via USB

English Storage
1

My internal disk cannot recognize, offline, and ‘/dev/sdx’ cannot find the disk. I unplug the disk, connect it via USB. I can find it on ‘/dev/sdd’ .
But I cannot view the main file on sdd3. My disk is not raid1, raid5, seemed to be raid0.
My disk is very old, about 10 years. Very lucky, can see it. I try to mount sdd1, it is ext3 filesystem, succeed, and I can see the file.
I tried the following command, failed.

mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted

why no recognizeable superblock?
Following commands are all my tried.

(parted) print
print
Model: ST2000LM 007-1R8174 (scsi)
Disk /dev/sdd: 2000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  1991GB  1990GB                  primary
 4      1991GB  1992GB  543MB   ext3            primary
 5      1992GB  2000GB  8554MB  linux-swap(v1)  primary
[~] # vgscan --mknodes
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1" using metadata type lvm2
  Found volume group "vg288" using metadata type lvm2
[~] # mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted
[~] # cat /proc/mdstat
Personalities : [linear] [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] [multipath]
md3 : active raid1 sdc3[0]
      17568370560 blocks super 1.0 [1/1] [U]

md1 : active raid1 sda3[2] sdb3[1]
      9756483200 blocks super 1.0 [2/2] [UU]

md322 : active raid1 sdc5[1] sdb5[0]
      6702656 blocks super 1.0 [2/2] [UU]
      bitmap: 0/1 pages [0KB], 65536KB chunk

md256 : active raid1 sdc2[2](S) sdb2[1] sda2[0]
      530112 blocks super 1.0 [2/2] [UU]
      bitmap: 0/1 pages [0KB], 65536KB chunk

md13 : active raid1 sda4[65] sdc4[67] sdb4[64]
      458880 blocks super 1.0 [64/3] [UU_U____________________________________________________________]
      bitmap: 1/1 pages [64KB], 65536KB chunk

md9 : active raid1 sda1[0] sdc1[66] sdb1[64]
      530048 blocks super 1.0 [65/3] [UU_U_____________________________________________________________]
      bitmap: 1/1 pages [64KB], 65536KB chunk

unused devices: <none>
[/mnt] # mount -o ro -t ext4 /dev/sdd3 /mnt/temp1
mount: wrong fs type, bad option, bad superblock on /dev/sdd3,
       missing codepage or other error
       In some cases useful info is found in syslog - try
       dmesg | tail  or so

[/mnt] # dmesg | tail
[ 2617.162261] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2648.112246] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2679.242230] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2710.192214] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2710.545531] ext3_orphan_cleanup: deleting unreferenced inode 14072
[ 2710.556484] ext3_orphan_cleanup: deleting unreferenced inode 14059
[ 2710.567745] EXT3-fs (sdd1): 4 orphan inodes deleted
[ 2710.597535] EXT3-fs (sdd1): recovery complete
[ 2710.601898] EXT3-fs (sdd1): mounted filesystem with writeback data mode
[ 3345.877128] EXT4-fs (sdd3): VFS: Can't find ext4 filesystem
2

Single disks are not RAID0 on QTS (RAID0 needs minimum of 2 drives)

Each disk has several partitions on it, md9 and m13 are two of them.

Best to open a ticket with QNAP, make sure you have backups in the future, NAS are not magic..disk drives die (and whats the plan then?)

3

Let me describe my qnap storage history.
I use sda,sdb(10TBx2 3.5-inch disk) make RAID1. In Storage and Snapshots, it shows DataVol1.
Then I add a 2TB(2.5-inch disk) NTFS filesystem disk(this broken disk), I used several months, not stable, so I format the disk with qnap filesystem(Cannot remember what filesystem). In Storage and Snapshots, it shows DataVol2.
Then I add a 16TB(3.5-inch disk) new disk(sdc). In Storage and Snapshots, it shows DataVol3.

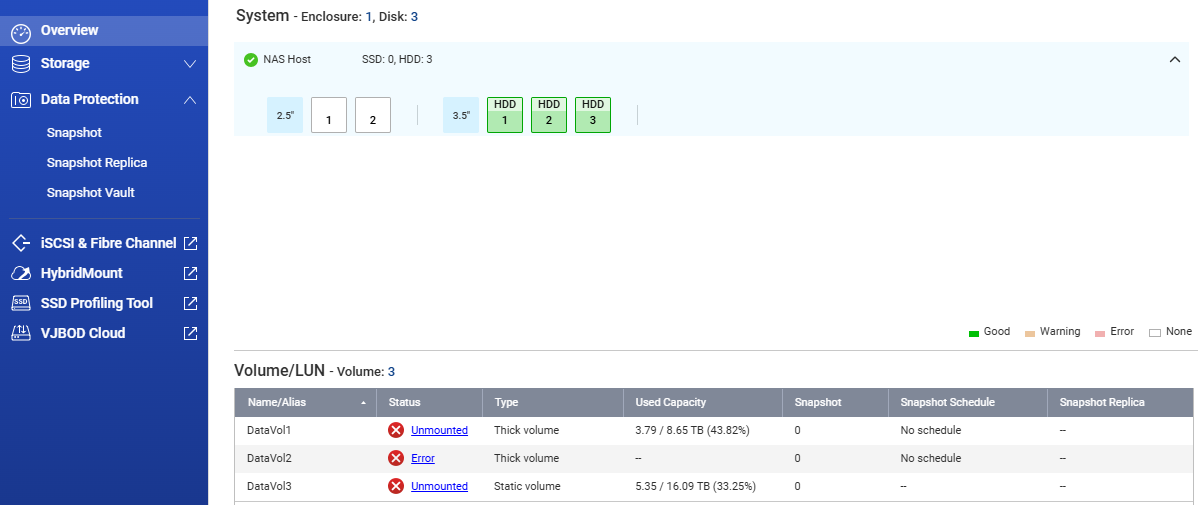

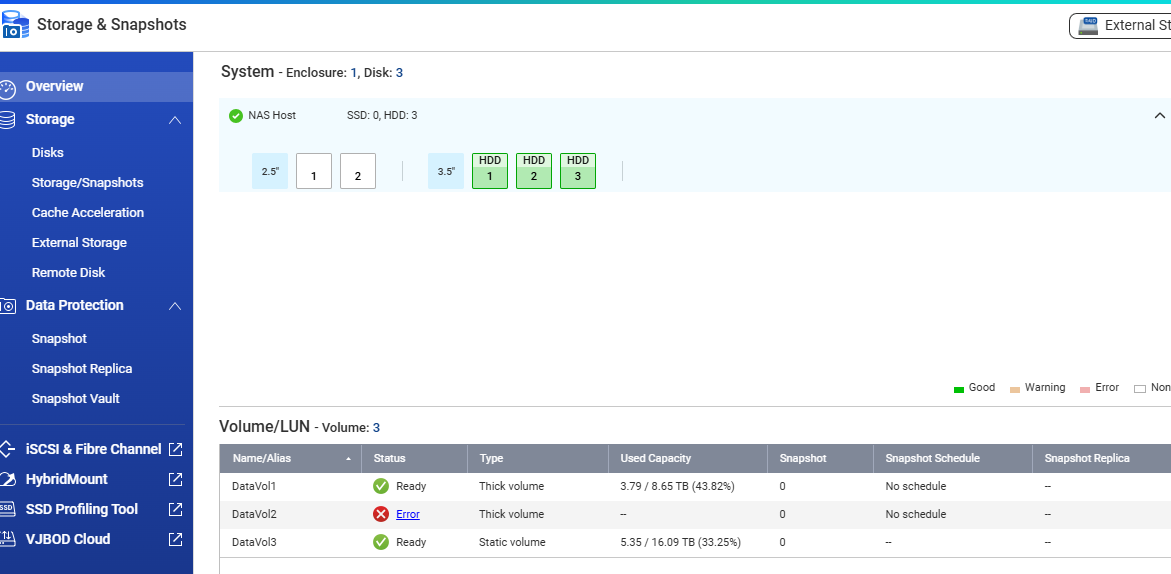

Following is all my online disk info.
Need I provide more infomation?

1
11171×574 54.4 KB

(parted) print all
print all
Model: WDC WD100EMAZ-00WJTA (scsi)
Disk /dev/sda: 10.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  10.0TB  9999GB                  primary
 4      10.0TB  10.0TB  510MB   ext3            primary


Model: HGST HUH721010ALE600 (scsi)
Disk /dev/sdb: 10.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  9992GB  9991GB                  primary
 4      9992GB  9992GB  543MB   ext3            primary
 5      9992GB  10.0TB  8554MB  linux-swap(v1)  primary


Model: Seagate ST18000NM013J (scsi)
Disk /dev/sdc: 18.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  18.0TB  18.0TB                  primary
 4      18.0TB  18.0TB  543MB   ext3            primary
 5      18.0TB  18.0TB  8554MB  linux-swap(v1)  primary


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg16t-lv3: 17.8TB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  17.8TB  17.8TB  ext4


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-lv1312: 998MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  998MB  998MB  ext3


Model: Linux device-mapper (thick) (dm)
Disk /dev/mapper/vg1raid1-lv1: 9819GB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  9819GB  9819GB  ext4


Error: /dev/mapper/vg1raid1-tp1: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1: 9820GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1-tpool: unrecognised disk label
Model: Linux device-mapper (thin-pool) (dm)
Disk /dev/mapper/vg1raid1-tp1-tpool: 9820GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_0: unrecognised disk label
Model: Linux device-mapper (zero) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_0: 4194kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_1: unrecognised disk label
Model: Linux device-mapper (zero) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_1: 4194kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_2: unrecognised disk label
Model: Linux device-mapper (flashcache) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_2: 9822GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tmeta: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1_tmeta: 68.7GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_2_fcorig: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_2_fcorig: 9822GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Model: Linux device-mapper (flashcache) (dm)
Disk /dev/mapper/cachedev3: 17.8TB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  17.8TB  17.8TB  ext4


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/cachedev1: 9819GB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  9819GB  9819GB  ext4


Error: /dev/md1: unrecognised disk label
Model: Linux Software RAID Array (md)
Disk /dev/md1: 9991GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/md3: unrecognised disk label
Model: Linux Software RAID Array (md)
Disk /dev/md3: 18.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Model: Linux Software RAID Array (md)
Disk /dev/md9: 543MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  543MB  543MB  ext3


Model: Linux Software RAID Array (md)
Disk /dev/md13: 470MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  470MB  470MB  ext3


Model: Linux Software RAID Array (md)
Disk /dev/md256: 543MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system     Flags
 1      0.00B  543MB  543MB  linux-swap(v1)


Model: Linux Software RAID Array (md)
Disk /dev/md322: 6864MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system     Flags
 1      0.00B  6864MB  6864MB  linux-swap(v1)


Error: /dev/mtdblock0: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock0: 1376kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock1: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock1: 393kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock2: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock2: 33.6MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock3: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock3: 226MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock4: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock4: 33.6MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock5: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock5: 226MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock6: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock6: 15.7MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:
4

Hope this helps: How to recover data from a QNAP Storage Pool (aka lvm2) in RAID1 configuration - QNAP NAS Community Forum

5

I have renamed vg name. I tried ‘mdadm --examine’. Still not ok.
Why all my disk is MBR partition table, not GPT?

[/mnt] # mdadm --examine /dev/sdd
/dev/sdd:
   MBR Magic : aa55
Partition[0] :   3907029167 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sdc
/dev/sdc:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sdb
/dev/sdb:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sda
/dev/sda:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
(parted) select /dev/sdd
select /dev/sdd
Using /dev/sdd
(parted) print
print
Model: ST2000LM 007-1R8174 (scsi)
Disk /dev/sdd: 2000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  1991GB  1990GB                  primary
 4      1991GB  1992GB  543MB   ext3            primary
 5      1992GB  2000GB  8554MB  linux-swap(v1)  primary

[/mnt] # mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted
[/mnt] # vgs -o +vg_uuid
  VG       #PV #LV #SN Attr   VSize  VFree VG UUID
  vg16t      1   2   0 wz--n- 16.36t    0  6Z2GSe-XMvK-HVX4-4Ve1-7nCe-aNV7-FZ5EDb
  vg1raid1   1   4   0 wz--n-  9.09t    0  jey6Ct-pMsc-pHW3-nO3I-tHIz-QnhS-PZyHLD
[/mnt] # vgscan  --cache
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1raid1" using metadata type lvm2
  Found volume group "vg16t" using metadata type lvm2

Luckily, I can mount sdd1, and found md_backup info. In it, ‘/dev/sdc3’ is my 2TB disk. Does this help me get more sdd3 info?

I have a question, in the md_backup infomation, I did not find 18TB disk infomation. This backup is not automated? How do I make a md_backup infomation?

[/mnt] # cat temp1/md_backup_2021-11-10_07.20.54
Superblock information recorded by md_checker at Wed Nov 10 07:20:54 HKT 2021
/dev/sdc3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : ebafbd6a:de844c8a:2254f493:23bb0e65
           Name : 2
  Creation Time : Sun Apr 11 18:11:42 2021
     Raid Level : raid1
   Raid Devices : 1

 Avail Dev Size : 3887119240 (1853.52 GiB 1990.21 GB)
     Array Size : 1943559616 (1853.52 GiB 1990.21 GB)
  Used Dev Size : 3887119232 (1853.52 GiB 1990.21 GB)
   Super Offset : 3887119504 sectors
   Unused Space : before=0 sectors, after=264 sectors
          State : clean
    Device UUID : c91ac824:5edbe4b1:bdee1597:40d052a9

    Update Time : Wed Nov 10 03:39:38 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : 27251618 - correct
         Events : 2


   Device Role : Active device 0
   Array State : A ('A' == active, '.' == missing, 'R' == replacing)
/dev/sda3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : b8de2939:b182507e:b6b83396:8c54e364
           Name : 1
  Creation Time : Wed Nov  4 15:07:27 2020
     Raid Level : raid1
   Raid Devices : 2

 Avail Dev Size : 19529738264 (9312.51 GiB 9999.23 GB)
     Array Size : 9756483200 (9304.51 GiB 9990.64 GB)
  Used Dev Size : 19512966400 (9304.51 GiB 9990.64 GB)
   Super Offset : 19529738528 sectors
   Unused Space : before=0 sectors, after=16772120 sectors
          State : clean
    Device UUID : b2660638:4af825a7:c080ad93:9e46bd69

    Update Time : Wed Nov 10 07:20:50 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : 9c7c5a59 - correct
         Events : 37404


   Device Role : Active device 0
   Array State : AA ('A' == active, '.' == missing, 'R' == replacing)
/dev/sdb3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : b8de2939:b182507e:b6b83396:8c54e364
           Name : 1
  Creation Time : Wed Nov  4 15:07:27 2020
     Raid Level : raid1
   Raid Devices : 2

 Avail Dev Size : 19512966400 (9304.51 GiB 9990.64 GB)
     Array Size : 9756483200 (9304.51 GiB 9990.64 GB)
   Super Offset : 19512966664 sectors
   Unused Space : before=0 sectors, after=256 sectors
          State : clean
    Device UUID : c5c381ae:061c9169:635c7512:eb4074d1

    Update Time : Wed Nov 10 07:20:50 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : b9e1dae7 - correct
         Events : 37404


   Device Role : Active device 1
   Array State : AA ('A' == active, '.' == missing, 'R' == replacing)
6

Now disk mount is following:

[/mnt] # df -hT
Filesystem           Type            Size      Used Available Use% Mounted on
none                 tmpfs         163.0M    139.1M     23.9M  85% /
devtmpfs             devtmpfs        7.9G     64.0K      7.9G   0% /dev
tmpfs                tmpfs          64.0M      9.1M     54.9M  14% /tmp
tmpfs                tmpfs           7.9G      2.8M      7.9G   0% /dev/shm
tmpfs                tmpfs          16.0M    128.0K     15.9M   1% /share
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9             ext3          493.5M    418.3M     75.1M  85% /mnt/HDA_ROOT
cgroup_root          tmpfs           7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/mapper/vg1-lv1312
                     ext4          932.2M      1.2M    931.0M   0% /mnt/pool1
/dev/mapper/cachedev1
                     ext4            8.6T      3.8T      4.9T  44% /share/CACHEDEV1_DATA
/dev/mapper/cachedev3
                     ext4           16.1T      5.4T     10.7T  33% /share/CACHEDEV3_DATA
/dev/md13            ext4          417.0M    341.4M     75.5M  82% /mnt/ext
tmpfs                tmpfs          32.0M     27.3M      4.8M  85% /samba_third_party
tmpfs                tmpfs           1.0M         0      1.0M   0% /share/external/.nd
tmpfs                tmpfs           1.0M         0      1.0M   0% /share/external/.cm
tmpfs                tmpfs           1.0M         0      1.0M   0% /mnt/hm/temp_mount
cmfs                 fuse            4.3T         0      4.3T   0% /share/external/.cm/0/173176a4d-2aad-48b1-893a-93497a5fd9f5
tmpfs                tmpfs          48.0M    512.0K     47.5M   1% /share/CACHEDEV1_DATA/.samba/lock/msg.lock
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                tmpfs         160.0M         0    160.0M   0% /tmp/wfm
/dev/mapper/cachedev1
                     ext4            8.6T      3.8T      4.9T  44% /mnt/HDA_ROOT/lib/modules/4.2.8/container-station
tmpfs                tmpfs         128.0K         0    128.0K   0% /share/CACHEDEV1_DATA/Container/container-station-data/lib/lxd/shmounts
tmpfs                tmpfs         128.0K         0    128.0K   0% /share/CACHEDEV1_DATA/Container/container-station-data/lib/lxd/devlxd
/dev/sdd1            ext3          493.5M    417.9M     75.5M  85% /mnt/temp1
7

Regarding this issue, please open a support ticket with us. Our Support Team will review your case and provide further assistance. Thank you for your cooperation and support!

8

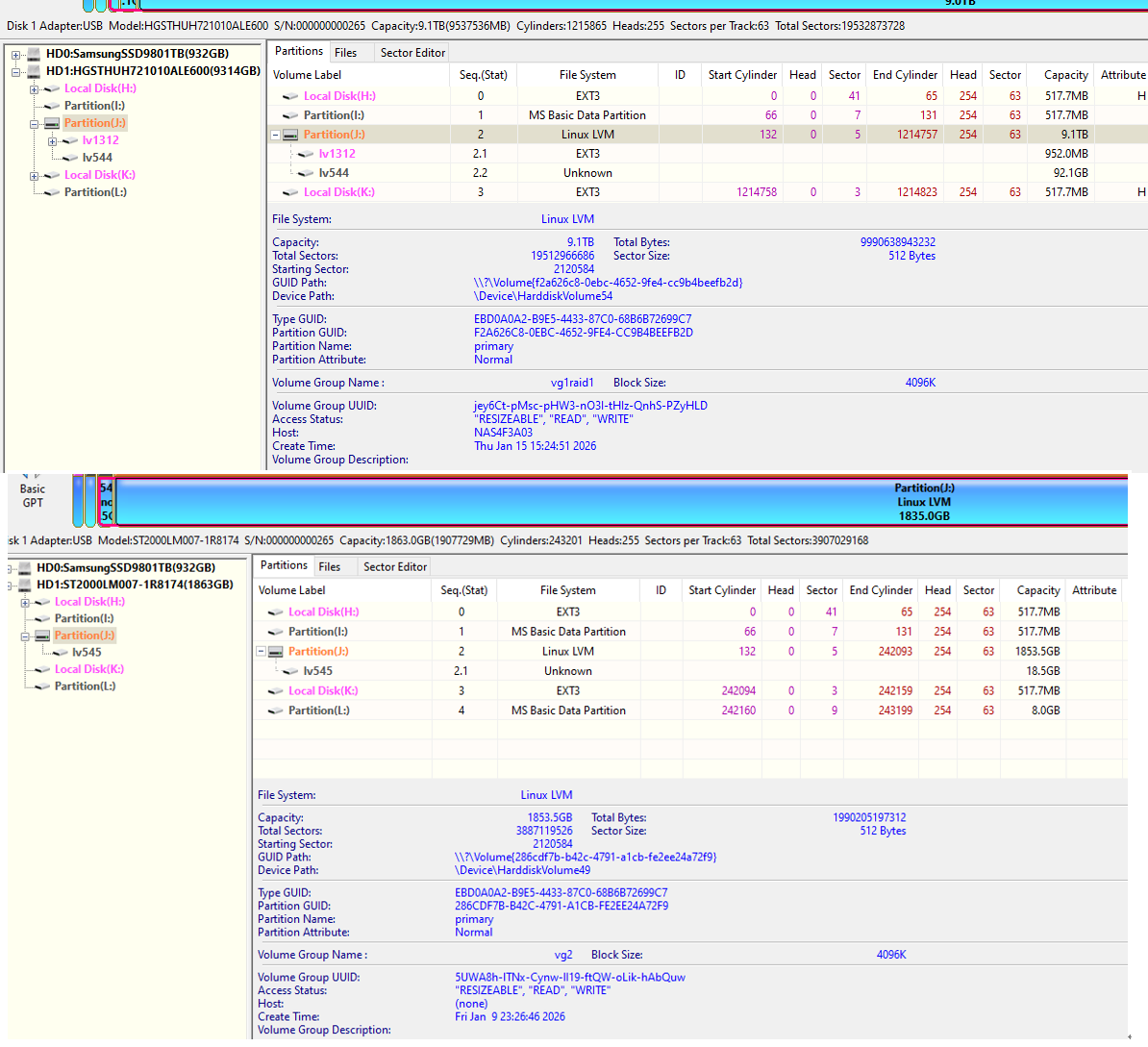

I tried DiskGenius and made a new discovery. In a RAID 1 array consisting of 2x10TB + 2TB disks, the 2TB RAID 1 hard drive is currently losing files on the NAS. How can I read the files from outside the NAS in this situation?

For testing, Online disk, I renamed vgname vg2→vg1raid1. So vgname not different.

image1194×1089 240 KB

Tried ufs-explorer-pro, when read disk, disk offline. Show the following error:

[I] 20:51:57 2026-01-22: Storages: Added storage Local Disk (H:) (type: Logical volume, path: \\.\H:).
[I] 20:52:01 2026-01-22: VFS: Detected Ext2/3/4 file system at offset 0 of Local Disk (H:).
[I] 20:52:04 2026-01-22: Storages: Added storage Local Disk (I:) (type: Logical volume, path: \\.\I:).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
.....(protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 4103 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 64 (protocol SYS, error 0x01B1).
...[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 39 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 16 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 17 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 18 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 19 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 20 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 21 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 22 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 23 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 264 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 265 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 266 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 267 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 268 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 269 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 270 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 271 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 272 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 273 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 274 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 275 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 276 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 277 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 278 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 279 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 280 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 281 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 282 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 283 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 284 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 285 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 286 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 287 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 288 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 289 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 290 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 291 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 292 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 293 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 294 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 295 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 296 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 297 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 298 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 299 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 300 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 301 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 302 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 303 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 304 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 305 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 306 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 307 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 308 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 309 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 310 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 311 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 312 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 313 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 314 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 315 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 316 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 317 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 318 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 319 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 320 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 321 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 322 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 323 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 324 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 325 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 326 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 327 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 328 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 329 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 330 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 331 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 332 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 333 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 334 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 335 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 336 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 337 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 338 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 339 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 340 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 341 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 342 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 343 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 344 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 345 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 346 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 347 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 348 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 349 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 350 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 351 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 352 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 353 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 354 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 355 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 356 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 357 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 358 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 359 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 360 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 361 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 362 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 363 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 364 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 365 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 366 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 367 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 368 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 369 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 370 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 371 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 372 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 373 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 374 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 375 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 376 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 377 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 378 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 379 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 380 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 381 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 382 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 383 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 384 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 385 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 386 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 387 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 388 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 389 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 390 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 391 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 392 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 393 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 394 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 395 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 396 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 397 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 398 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 399 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 400 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 401 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 402 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 403 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 404 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 405 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 406 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 407 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 408 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 409 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 410 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 411 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 412 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 413 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 414 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 415 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 416 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 417 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 418 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 419 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 420 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 421 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 422 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 423 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 424 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 425 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 426 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 427 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 428 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 429 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 430 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 431 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 432 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 433 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 434 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 435 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 436 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 437 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 438 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 439 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 440 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 441 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 442 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 443 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 444 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 445 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 446 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 447 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 448 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 449 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 450 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 451 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 452 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 453 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 454 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 455 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 456 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 457 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 458 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 459 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 460 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 461 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 462 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 463 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 464 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 465 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 466 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 467 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 468 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 469 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 470 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 471 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 472 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 473 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 474 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 475 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 476 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 477 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 478 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 479 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 480 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 481 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 482 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 483 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 484 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 485 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 486 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 487 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 488 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 489 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 490 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 491 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 492 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 493 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 494 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 495 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 496 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 497 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 498 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 499 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 500 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 501 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 502 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 503 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 504 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 505 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 506 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 507 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 508 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 509 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 510 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 511 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 34 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 24 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060240 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060241 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060242 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060243 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060244 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060245 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060246 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060247 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262144 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262145 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262146 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262147 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262148 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262149 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262150 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262151 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786432 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786433 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786434 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786435 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786436 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786437 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786438 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786439 (protocol SYS, error 0x01B1).
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\J:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\K:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\L:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\M:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\N:.
9

I unplugged the disks from the working RAID 1 array on the NAS and tried to access them using UFS-Pro, but the disks still failed to load. This 2TB disk was merged into the RAID 1 array, so it’s not recognized.

How can I access the files on the RAID 1 disks after removing them from the NAS?

10

I replug disk to NAS, reboot nas, cannot recognize, ooops…

lvm info can see them. But website not mount, how to mount them?

Badly, I do not know mount point.

3
31198×505 42.6 KB

[admin@NAS4F3A03 ~]# pvscan
  PV /dev/md1   VG vg1raid1        lvm2 [9.09 TiB / 0    free]
  PV /dev/md3   VG vg16t           lvm2 [16.36 TiB / 0    free]
  Total: 2 [25.45 TiB] / in use: 2 [25.45 TiB] / in no VG: 0 [0   ]
[admin@NAS4F3A03 ~]# vgscan
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1raid1" using metadata type lvm2
  Found volume group "vg16t" using metadata type lvm2
[admin@NAS4F3A03 ~]# lvscan
  inactive          '/dev/vg1raid1/tp1' [8.93 TiB] inherit
  inactive          '/dev/vg1raid1/lv1' [8.93 TiB] inherit
  inactive          '/dev/vg1raid1/lv1312' [952.00 MiB] inherit
  inactive          '/dev/vg1raid1/lv544' [92.11 GiB] inherit
  inactive          '/dev/vg16t/lv546' [144.00 GiB] inherit
  inactive          '/dev/vg16t/lv3' [16.22 TiB] inherit
[admin@NAS4F3A03 ~]# df -hT
Filesystem           Type            Size      Used Available Use% Mounted on
none                 tmpfs         163.0M    118.3M     44.7M  73% /
devtmpfs             devtmpfs        7.9G     64.0K      7.9G   0% /dev
tmpfs                tmpfs          64.0M      5.0M     59.0M   8% /tmp
tmpfs                tmpfs           7.9G      2.3M      7.9G   0% /dev/shm
tmpfs                tmpfs          16.0M    128.0K     15.9M   1% /share
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9             ext3          493.5M    418.1M     75.3M  85% /mnt/HDA_ROOT
cgroup_root          tmpfs           7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/md13            ext4          417.0M    339.5M     77.5M  81% /mnt/ext
tmpfs                tmpfs          32.0M     27.3M      4.8M  85% /samba_third_party
/dev/ram2            ext2          193.7M      1.5M    192.2M   1% /mnt/update
tmpfs                tmpfs          64.0M     28.2M     35.8M  44% /samba
tmpfs                tmpfs          48.0M    832.0K     47.2M   2% /samba/.samba/lock/msg.lock
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                tmpfs         160.0M         0    160.0M   0% /tmp/wfm
11

Did you create a support ticket with QNAP?

12

yes, but them are not technical.

13

Level 1 tech support can be a pain to get past.

Maybe @SteveKo can help escalate your ticket to someone more suitable? :wink:

14

I renamed vgname from vg1 to vg1raid1. So reboot nas, website cannot recognize
volume. Now rename back, fixed it. Thanks tech support.
Following is details, hope help similar guys.

[~] # md_checker

Welcome to MD superblock checker (v2.0) - have a nice day~

Scanning system...


RAID metadata found!
UUID:           b8de2939:b182507e:b6b83396:8c54e364
Level:          raid1
Devices:        2
Name:           md1
Chunk Size:     -
md Version:     1.0
Creation Time:  Nov 4 15:07:27 2020
Status:         ONLINE (md1) [UU]
===============================================================================================
 Enclosure | Port | Block Dev Name | # | Status |   Last Update Time   | Events | Array State
===============================================================================================
 NAS_HOST       3        /dev/sda3   0   Active   Jan 23 21:14:35 2026    37429   AA
 NAS_HOST       4        /dev/sdb3   1   Active   Jan 23 21:14:35 2026    37429   AA
===============================================================================================


RAID metadata found!
UUID:           e72edc19:a6b17c2f:1b381602:5fe9236b
Level:          raid1
Devices:        1
Name:           md3
Chunk Size:     -
md Version:     1.0
Creation Time:  May 23 12:23:18 2022
Status:         ONLINE (md3) [U]
===============================================================================================
 Enclosure | Port | Block Dev Name | # | Status |   Last Update Time   | Events | Array State
===============================================================================================
 NAS_HOST       5        /dev/sdc3   0   Active   Jan 23 21:14:34 2026        2   A
===============================================================================================

[~] # pvs
  PV         VG       Fmt  Attr PSize  PFree
  /dev/md1   vg1raid1 lvm2 a--   9.09t    0
  /dev/md3   vg16t    lvm2 a--  16.36t    0
[~] # vgs
  VG       #PV #LV #SN Attr   VSize  VFree
  vg16t      1   2   0 wz--n- 16.36t    0
  vg1raid1   1   4   0 wz--n-  9.09t    0
[~] # lvs
  LV     VG       Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  lv3    vg16t    -wi-------  16.22t
  lv546  vg16t    -wi------- 144.00g
  lv1    vg1raid1 Vwi---t---   8.93t tp1
  lv1312 vg1raid1 -wi------- 952.00m
  lv544  vg1raid1 -wi-------  92.11g
  tp1    vg1raid1 twi---t---   8.93t
[~] # qcli_storage  -d
Enclosure  Port  Sys_Name          Type      Size      Alias             Signature   Partitions  Model
NAS_HOST   3     /dev/sda          HDD:free  9.10 TB   3.5" SATA HDD 1   QNAP FLEX   4           WDC WD100EMAZ-00WJTA0
NAS_HOST   4     /dev/sdb          HDD:data  9.10 TB   3.5" SATA HDD 2   QNAP FLEX   5           HGST HUH721010ALE600
NAS_HOST   5     /dev/sdc          HDD:data  16.37 TB  3.5" SATA HDD 3   QNAP FLEX   5           Seagate ST18000NM013J
[~] # lvchange  -ay  vg16t
[~] # lvs
  LV     VG       Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  lv3    vg16t    -wi-a-----  16.22t
  lv546  vg16t    -wi-a----- 144.00g
  lv1    vg1raid1 Vwi---t---   8.93t tp1
  lv1312 vg1raid1 -wi------- 952.00m
  lv544  vg1raid1 -wi-------  92.11g
  tp1    vg1raid1 twi---t---   8.93t
[~] # cd   /dev/mapper/
[/dev/mapper] # ll
total 0
drwxr-xr-x  2 admin administrators      100 2026-01-24 07:08 ./
drwxr-xr-x 12 admin administrators      20K 2026-01-24 07:08 ../
crw-------  1 admin administrators  10, 236 1970-01-01 08:00 control
brw-rw----  1 admin administrators 252,   1 2026-01-24 07:08 vg16t-lv3
brw-rw----  1 admin administrators 252,   0 2026-01-24 07:08 vg16t-lv546
[/dev/mapper] # cd
[~] # mkdir  /mnt/tt
[~] # mount  -t  ext4  /dev/mapper/vg16t-lv3  /mnt/tt
[~] # df
Filesystem                Size      Used Available Use% Mounted on
none                    163.0M    117.1M     45.9M  72% /
devtmpfs                  7.9G     64.0K      7.9G   0% /dev
tmpfs                    64.0M      5.4M     58.6M   8% /tmp
tmpfs                     7.9G      2.3M      7.9G   0% /dev/shm
tmpfs                    16.0M    128.0K     15.9M   1% /share
tmpfs                    16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9                493.5M    418.1M     75.4M  85% /mnt/HDA_ROOT
cgroup_root               7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/md13               417.0M    339.5M     77.5M  81% /mnt/ext
tmpfs                    32.0M     27.3M      4.8M  85% /samba_third_party
/dev/ram2               193.7M      1.5M    192.2M   1% /mnt/update
tmpfs                    64.0M     28.2M     35.8M  44% /samba
tmpfs                    48.0M    832.0K     47.2M   2% /samba/.samba/lock/msg.lock
tmpfs                    16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                   160.0M         0    160.0M   0% /tmp/wfm
/dev/mapper/vg16t-lv3
                         16.1T      5.4T     10.7T  33% /mnt/tt
[~] # umount /dev/mapper/vg16t-lv3
[~] # df
Filesystem                Size      Used Available Use% Mounted on
none                    163.0M    117.4M     45.6M  72% /
devtmpfs                  7.9G     64.0K      7.9G   0% /dev
tmpfs                    64.0M      5.4M     58.6M   8% /tmp
tmpfs                     7.9G      2.3M      7.9G   0% /dev/shm
tmpfs                    16.0M    128.0K     15.9M   1% /share
tmpfs                    16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9                493.5M    418.1M     75.4M  85% /mnt/HDA_ROOT
cgroup_root               7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/md13               417.0M    339.5M     77.5M  81% /mnt/ext
tmpfs                    32.0M     27.3M      4.8M  85% /samba_third_party
/dev/ram2               193.7M      1.5M    192.2M   1% /mnt/update
tmpfs                    64.0M     28.2M     35.8M  44% /samba
tmpfs                    48.0M    832.0K     47.2M   2% /samba/.samba/lock/msg.lock
tmpfs                    16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                   160.0M         0    160.0M   0% /tmp/wfm
[~] # pvs
  PV         VG       Fmt  Attr PSize  PFree
  /dev/md1   vg1raid1 lvm2 a--   9.09t    0
  /dev/md3   vg16t    lvm2 a--  16.36t    0
[~] # vgs
  VG       #PV #LV #SN Attr   VSize  VFree
  vg16t      1   2   0 wz--n- 16.36t    0
  vg1raid1   1   4   0 wz--n-  9.09t    0
[~] # vgrename vg16t vg3
  Volume group "vg16t" successfully renamed to "vg3"
[~] # vgs
  VG       #PV #LV #SN Attr   VSize  VFree
  vg1raid1   1   4   0 wz--n-  9.09t    0
  vg3        1   2   0 wz--n- 16.36t    0
[~] # vgrename vg1raid1 vg1
  Volume group "vg1raid1" successfully renamed to "vg1"
[~] # vgs
  VG   #PV #LV #SN Attr   VSize  VFree
  vg1    1   4   0 wz--n-  9.09t    0
  vg3    1   2   0 wz--n- 16.36t    0
[~] # lvs
  LV     VG   Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  lv1    vg1  Vwi---t---   8.93t tp1
  lv1312 vg1  -wi------- 952.00m
  lv544  vg1  -wi-------  92.11g
  tp1    vg1  twi---t---   8.93t
  lv3    vg3  -wi-a-----  16.22t
  lv546  vg3  -wi-a----- 144.00g
[~] # /etc/init.d/init_lvm.sh
Changing old config name...
mv: can't rename '/etc/config/ssdcache.conf': No such file or directory
mv: can't rename '/etc/config/qlvm.conf': No such file or directory
mv: can't rename '/etc/config/qdrbd.conf': No such file or directory
Reinitialing...
Detect disk(8, 0)...
dev_count ++ = 0
Detect disk(8, 16)...
dev_count ++ = 1
Detect disk(8, 32)...
dev_count ++ = 2
Detect disk(252, 0)...
ignore non-root enclosure disk(252, 0).
Detect disk(8, 0)...
Detect disk(8, 16)...
Detect disk(8, 32)...
Detect disk(252, 0)...
ignore non-root enclosure disk(252, 0).
error opening given file name: No such file or directory
sys_startup_p2:got called count = -1
Done

[~] # df
Filesystem                Size      Used Available Use% Mounted on
none                    163.0M    117.8M     45.2M  72% /
devtmpfs                  7.9G     64.0K      7.9G   0% /dev
tmpfs                    64.0M      5.5M     58.5M   9% /tmp
tmpfs                     7.9G      2.3M      7.9G   0% /dev/shm
tmpfs                    16.0M    128.0K     15.9M   1% /share
tmpfs                    16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9                493.5M    418.1M     75.3M  85% /mnt/HDA_ROOT
cgroup_root               7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/md13               417.0M    339.5M     77.5M  81% /mnt/ext
tmpfs                    32.0M     27.3M      4.8M  85% /samba_third_party
/dev/ram2               193.7M      1.5M    192.2M   1% /mnt/update
tmpfs                    64.0M     28.2M     35.8M  44% /samba
tmpfs                    48.0M    512.0K     47.5M   1% /samba/.samba/lock/msg.lock
tmpfs                    16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                   160.0M         0    160.0M   0% /tmp/wfm
/dev/mapper/vg1-lv1312
                        932.2M      1.2M    931.0M   0% /mnt/pool1
/dev/mapper/cachedev1
                          8.6T      3.8T      4.9T  44% /share/CACHEDEV1_DATA
/dev/mapper/cachedev3
                         16.1T      5.4T     10.7T  33% /share/CACHEDEV3_DATA
[~] # pvs
  PV         VG   Fmt  Attr PSize  PFree
  /dev/md1   vg1  lvm2 a--   9.09t    0
  /dev/md3   vg3  lvm2 a--  16.36t    0
[~] # vgs
  VG   #PV #LV #SN Attr   VSize  VFree
  vg1    1   4   0 wz--n-  9.09t    0
  vg3    1   2   0 wz--n- 16.36t    0
[~] # lvs
  LV     VG   Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  lv1    vg1  Vwi-aot---   8.93t tp1         100.00
  lv1312 vg1  -wi-ao---- 952.00m
  lv544  vg1  -wi-------  92.11g
  tp1    vg1  twi-aot---   8.93t             99.99  0.89
  lv3    vg3  -wi-ao----  16.22t
  lv546  vg3  -wi------- 144.00g
15

Please stop going down roads by yourself! Ask QNAP support to escalate the ticket for you and you will get help. Their support staff is very good. You just have to be patient and bug them in the portal about stuff.

16

If you already have a support ticket number, please provide it to me. Thanks!
