認識されない内蔵ディスクをUSB経由でマウントする

youngluoyang · 2026 年 1 月 17 日午後 6:07

内部ディスクが認識されず、オフラインで、「/dev/sdx」が見つかりません。ディスクを取り外してUSB経由で接続すると、「/dev/sdd」として見つかります。
しかし、sdd3上のメインファイルが表示できません。ディスクはraid1やraid5ではなく、raid0のようです。
ディスクは非常に古く、約10年前のものです。運良く認識できました。sdd1をマウントしてみると、ext3ファイルシステムで成功し、ファイルも見えます。
以下のコマンドを試しましたが、失敗しました。

mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted

なぜ認識可能なスーパーブロックがないのでしょうか？
以下は試した全コマンドです。

(parted) print
print
Model: ST2000LM 007-1R8174 (scsi)
Disk /dev/sdd: 2000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  1991GB  1990GB                  primary
 4      1991GB  1992GB  543MB   ext3            primary
 5      1992GB  2000GB  8554MB  linux-swap(v1)  primary
[~] # vgscan --mknodes
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1" using metadata type lvm2
  Found volume group "vg288" using metadata type lvm2
[~] # mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted
[~] # cat /proc/mdstat
Personalities : [linear] [raid0] [raid1] [raid10] [raid6] [raid5] [raid4] [multipath]
md3 : active raid1 sdc3[0]
      17568370560 blocks super 1.0 [1/1] [U]

md1 : active raid1 sda3[2] sdb3[1]
      9756483200 blocks super 1.0 [2/2] [UU]

md322 : active raid1 sdc5[1] sdb5[0]
      6702656 blocks super 1.0 [2/2] [UU]
      bitmap: 0/1 pages [0KB], 65536KB chunk

md256 : active raid1 sdc2[2](S) sdb2[1] sda2[0]
      530112 blocks super 1.0 [2/2] [UU]
      bitmap: 0/1 pages [0KB], 65536KB chunk

md13 : active raid1 sda4[65] sdc4[67] sdb4[64]
      458880 blocks super 1.0 [64/3] [UU_U____________________________________________________________]
      bitmap: 1/1 pages [64KB], 65536KB chunk

md9 : active raid1 sda1[0] sdc1[66] sdb1[64]
      530048 blocks super 1.0 [65/3] [UU_U_____________________________________________________________]
      bitmap: 1/1 pages [64KB], 65536KB chunk

unused devices: <none>
[/mnt] # mount -o ro -t ext4 /dev/sdd3 /mnt/temp1
mount: wrong fs type, bad option, bad superblock on /dev/sdd3,
       missing codepage or other error
       In some cases useful info is found in syslog - try
       dmesg | tail  or so

[/mnt] # dmesg | tail
[ 2617.162261] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2648.112246] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2679.242230] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2710.192214] usb 2-2: reset SuperSpeed USB device number 4 using xhci_hcd
[ 2710.545531] ext3_orphan_cleanup: deleting unreferenced inode 14072
[ 2710.556484] ext3_orphan_cleanup: deleting unreferenced inode 14059
[ 2710.567745] EXT3-fs (sdd1): 4 orphan inodes deleted
[ 2710.597535] EXT3-fs (sdd1): recovery complete
[ 2710.601898] EXT3-fs (sdd1): mounted filesystem with writeback data mode
[ 3345.877128] EXT4-fs (sdd3): VFS: Can't find ext4 filesystem

dolbyman · 2026 年 1 月 17 日午後 6:11

QTSでは単一ディスクはRAID0ではありません（RAID0には最低2台のドライブが必要です）

各ディスクには複数のパーティションがあり、md9とm13はその一部です。

QNAPにサポートチケットを開くのが最善です。将来のためにバックアップを必ず取ってください。NASは魔法ではありません…ディスクドライブは故障します（その時の対策はどうしますか？）

youngluoyang · 2026 年 1 月 18 日午前 3:01

私のQNAPストレージの履歴について説明します。

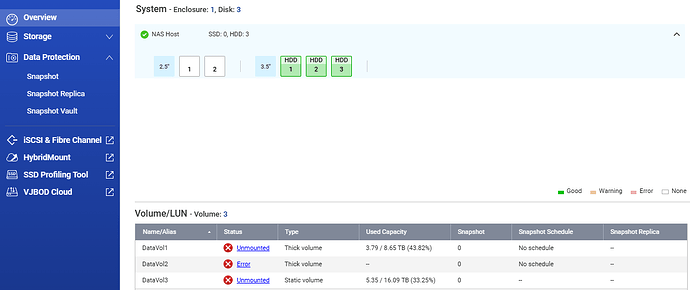

sda, sdb（10TB×2の3.5インチディスク）を使ってRAID1を構成しています。Storage and Snapshots（ストレージとスナップショット）ではDataVol1と表示されています。
その後、2TB（2.5インチディスク）のNTFSファイルシステムディスク（この壊れたディスク）を追加しました。数ヶ月使用しましたが安定せず、QNAPファイルシステムでフォーマットしました（どのファイルシステムかは覚えていません）。Storage and SnapshotsではDataVol2と表示されました。
さらに16TB（3.5インチディスク）の新しいディスク（sdc）を追加しました。Storage and SnapshotsではDataVol3と表示されています。

以下は、すべてのオンラインディスク情報です。
追加情報が必要でしょうか？

(parted) print all
print all
Model: WDC WD100EMAZ-00WJTA (scsi)
Disk /dev/sda: 10.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  10.0TB  9999GB                  primary
 4      10.0TB  10.0TB  510MB   ext3            primary


Model: HGST HUH721010ALE600 (scsi)
Disk /dev/sdb: 10.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  9992GB  9991GB                  primary
 4      9992GB  9992GB  543MB   ext3            primary
 5      9992GB  10.0TB  8554MB  linux-swap(v1)  primary


Model: Seagate ST18000NM013J (scsi)
Disk /dev/sdc: 18.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  18.0TB  18.0TB                  primary
 4      18.0TB  18.0TB  543MB   ext3            primary
 5      18.0TB  18.0TB  8554MB  linux-swap(v1)  primary


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg16t-lv3: 17.8TB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  17.8TB  17.8TB  ext4


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-lv1312: 998MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  998MB  998MB  ext3


Model: Linux device-mapper (thick) (dm)
Disk /dev/mapper/vg1raid1-lv1: 9819GB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  9819GB  9819GB  ext4


Error: /dev/mapper/vg1raid1-tp1: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1: 9820GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1-tpool: unrecognised disk label
Model: Linux device-mapper (thin-pool) (dm)
Disk /dev/mapper/vg1raid1-tp1-tpool: 9820GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_0: unrecognised disk label
Model: Linux device-mapper (zero) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_0: 4194kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_1: unrecognised disk label
Model: Linux device-mapper (zero) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_1: 4194kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_2: unrecognised disk label
Model: Linux device-mapper (flashcache) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_2: 9822GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tmeta: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1_tmeta: 68.7GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/mapper/vg1raid1-tp1_tierdata_2_fcorig: unrecognised disk label
Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/vg1raid1-tp1_tierdata_2_fcorig: 9822GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Model: Linux device-mapper (flashcache) (dm)
Disk /dev/mapper/cachedev3: 17.8TB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  17.8TB  17.8TB  ext4


Model: Linux device-mapper (linear) (dm)
Disk /dev/mapper/cachedev1: 9819GB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system  Flags
 1      0.00B  9819GB  9819GB  ext4


Error: /dev/md1: unrecognised disk label
Model: Linux Software RAID Array (md)
Disk /dev/md1: 9991GB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Error: /dev/md3: unrecognised disk label
Model: Linux Software RAID Array (md)
Disk /dev/md3: 18.0TB
Sector size (logical/physical): 512B/4096B
Partition Table: unknown
Disk Flags:

Model: Linux Software RAID Array (md)
Disk /dev/md9: 543MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  543MB  543MB  ext3


Model: Linux Software RAID Array (md)
Disk /dev/md13: 470MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system  Flags
 1      0.00B  470MB  470MB  ext3


Model: Linux Software RAID Array (md)
Disk /dev/md256: 543MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End    Size   File system     Flags
 1      0.00B  543MB  543MB  linux-swap(v1)


Model: Linux Software RAID Array (md)
Disk /dev/md322: 6864MB
Sector size (logical/physical): 512B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system     Flags
 1      0.00B  6864MB  6864MB  linux-swap(v1)


Error: /dev/mtdblock0: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock0: 1376kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock1: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock1: 393kB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock2: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock2: 33.6MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock3: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock3: 226MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock4: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock4: 33.6MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock5: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock5: 226MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

Error: /dev/mtdblock6: unrecognised disk label
Model: Unknown (unknown)
Disk /dev/mtdblock6: 15.7MB
Sector size (logical/physical): 512B/512B
Partition Table: unknown
Disk Flags:

OneCD · 2026 年 1 月 18 日午前 4:10

参考になることを願います: How to recover data from a QNAP Storage Pool (aka lvm2) in RAID1 configuration - QNAP NAS Community Forum

youngluoyang · 2026 年 1 月 18 日午前 11:11

vg名をリネームしました。‘mdadm --examine’を試しましたが、まだうまくいきません。
なぜ私のディスクはすべてMBRパーティションテーブルで、GPTではないのでしょうか？

[/mnt] # mdadm --examine /dev/sdd
/dev/sdd:
   MBR Magic : aa55
Partition[0] :   3907029167 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sdc
/dev/sdc:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sdb
/dev/sdb:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
[/mnt] # mdadm --examine /dev/sda
/dev/sda:
   MBR Magic : aa55
Partition[0] :   4294967295 sectors at            1 (type ee)
(parted) select /dev/sdd
select /dev/sdd
Using /dev/sdd
(parted) print
print
Model: ST2000LM 007-1R8174 (scsi)
Disk /dev/sdd: 2000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name     Flags
 1      20.5kB  543MB   543MB   ext3            primary
 2      543MB   1086MB  543MB   linux-swap(v1)  primary
 3      1086MB  1991GB  1990GB                  primary
 4      1991GB  1992GB  543MB   ext3            primary
 5      1992GB  2000GB  8554MB  linux-swap(v1)  primary

[/mnt] # mdadm --assemble /dev/md42 /dev/sdd3
mdadm: no recogniseable superblock on /dev/sdd3
mdadm: /dev/sdd3 has no superblock - assembly aborted
[/mnt] # vgs -o +vg_uuid
  VG       #PV #LV #SN Attr   VSize  VFree VG UUID
  vg16t      1   2   0 wz--n- 16.36t    0  6Z2GSe-XMvK-HVX4-4Ve1-7nCe-aNV7-FZ5EDb
  vg1raid1   1   4   0 wz--n-  9.09t    0  jey6Ct-pMsc-pHW3-nO3I-tHIz-QnhS-PZyHLD
[/mnt] # vgscan  --cache
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1raid1" using metadata type lvm2
  Found volume group "vg16t" using metadata type lvm2

幸い、sdd1をマウントでき、md_backup情報を見つけました。その中で「/dev/sdc3」が私の2TBディスクです。これはsdd3の情報取得に役立ちますか？

質問があります。md_backup情報の中に18TBディスクの情報が見つかりませんでした。このバックアップは自動ではないのでしょうか？md_backup情報を作成するにはどうすればいいですか？

[/mnt] # cat temp1/md_backup_2021-11-10_07.20.54
Superblock information recorded by md_checker at Wed Nov 10 07:20:54 HKT 2021
/dev/sdc3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : ebafbd6a:de844c8a:2254f493:23bb0e65
           Name : 2
  Creation Time : Sun Apr 11 18:11:42 2021
     Raid Level : raid1
   Raid Devices : 1

 Avail Dev Size : 3887119240 (1853.52 GiB 1990.21 GB)
     Array Size : 1943559616 (1853.52 GiB 1990.21 GB)
  Used Dev Size : 3887119232 (1853.52 GiB 1990.21 GB)
   Super Offset : 3887119504 sectors
   Unused Space : before=0 sectors, after=264 sectors
          State : clean
    Device UUID : c91ac824:5edbe4b1:bdee1597:40d052a9

    Update Time : Wed Nov 10 03:39:38 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : 27251618 - correct
         Events : 2


   Device Role : Active device 0
   Array State : A ('A' == active, '.' == missing, 'R' == replacing)
/dev/sda3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : b8de2939:b182507e:b6b83396:8c54e364
           Name : 1
  Creation Time : Wed Nov  4 15:07:27 2020
     Raid Level : raid1
   Raid Devices : 2

 Avail Dev Size : 19529738264 (9312.51 GiB 9999.23 GB)
     Array Size : 9756483200 (9304.51 GiB 9990.64 GB)
  Used Dev Size : 19512966400 (9304.51 GiB 9990.64 GB)
   Super Offset : 19529738528 sectors
   Unused Space : before=0 sectors, after=16772120 sectors
          State : clean
    Device UUID : b2660638:4af825a7:c080ad93:9e46bd69

    Update Time : Wed Nov 10 07:20:50 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : 9c7c5a59 - correct
         Events : 37404


   Device Role : Active device 0
   Array State : AA ('A' == active, '.' == missing, 'R' == replacing)
/dev/sdb3:
          Magic : a92b4efc
        Version : 1.0
    Feature Map : 0x0
     Array UUID : b8de2939:b182507e:b6b83396:8c54e364
           Name : 1
  Creation Time : Wed Nov  4 15:07:27 2020
     Raid Level : raid1
   Raid Devices : 2

 Avail Dev Size : 19512966400 (9304.51 GiB 9990.64 GB)
     Array Size : 9756483200 (9304.51 GiB 9990.64 GB)
   Super Offset : 19512966664 sectors
   Unused Space : before=0 sectors, after=256 sectors
          State : clean
    Device UUID : c5c381ae:061c9169:635c7512:eb4074d1

    Update Time : Wed Nov 10 07:20:50 2021
  Bad Block Log : 512 entries available at offset -8 sectors
       Checksum : b9e1dae7 - correct
         Events : 37404


   Device Role : Active device 1
   Array State : AA ('A' == active, '.' == missing, 'R' == replacing)

youngluoyang · 2026 年 1 月 18 日午後 1:38

現在のディスクマウントは以下の通りです：

[/mnt] # df -hT
Filesystem           Type            Size      Used Available Use% Mounted on
none                 tmpfs         163.0M    139.1M     23.9M  85% /
devtmpfs             devtmpfs        7.9G     64.0K      7.9G   0% /dev
tmpfs                tmpfs          64.0M      9.1M     54.9M  14% /tmp
tmpfs                tmpfs           7.9G      2.8M      7.9G   0% /dev/shm
tmpfs                tmpfs          16.0M    128.0K     15.9M   1% /share
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9             ext3          493.5M    418.3M     75.1M  85% /mnt/HDA_ROOT
cgroup_root          tmpfs           7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/mapper/vg1-lv1312
                     ext4          932.2M      1.2M    931.0M   0% /mnt/pool1
/dev/mapper/cachedev1
                     ext4            8.6T      3.8T      4.9T  44% /share/CACHEDEV1_DATA
/dev/mapper/cachedev3
                     ext4           16.1T      5.4T     10.7T  33% /share/CACHEDEV3_DATA
/dev/md13            ext4          417.0M    341.4M     75.5M  82% /mnt/ext
tmpfs                tmpfs          32.0M     27.3M      4.8M  85% /samba_third_party
tmpfs                tmpfs           1.0M         0      1.0M   0% /share/external/.nd
tmpfs                tmpfs           1.0M         0      1.0M   0% /share/external/.cm
tmpfs                tmpfs           1.0M         0      1.0M   0% /mnt/hm/temp_mount
cmfs                 fuse            4.3T         0      4.3T   0% /share/external/.cm/0/173176a4d-2aad-48b1-893a-93497a5fd9f5
tmpfs                tmpfs          48.0M    512.0K     47.5M   1% /share/CACHEDEV1_DATA/.samba/lock/msg.lock
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                tmpfs         160.0M         0    160.0M   0% /tmp/wfm
/dev/mapper/cachedev1
                     ext4            8.6T      3.8T      4.9T  44% /mnt/HDA_ROOT/lib/modules/4.2.8/container-station
tmpfs                tmpfs         128.0K         0    128.0K   0% /share/CACHEDEV1_DATA/Container/container-station-data/lib/lxd/shmounts
tmpfs                tmpfs         128.0K         0    128.0K   0% /share/CACHEDEV1_DATA/Container/container-station-data/lib/lxd/devlxd
/dev/sdd1            ext3          493.5M    417.9M     75.5M  85% /mnt/temp1

SteveKo · 2026 年 1 月 19 日午前 9:55

この件につきましては、サポートチケットを発行してください。サポートチームがご状況を確認し、さらにご案内いたします。ご協力とご支援、誠にありがとうございます。

youngluoyang · 2026 年 1 月 22 日午後 2:31

I tried DiskGenius and made a new discovery. In a RAID 1 array consisting of 2x10TB + 2TB disks, the 2TB RAID 1 hard drive is currently losing files on the NAS. How can I read the files from outside the NAS in this situation?

For testing, Online disk, I renamed vgname vg2→vg1raid1. So vgname not different.

Tried ufs-explorer-pro, when read disk, disk offline. Show the following error:

[I] 20:51:57 2026-01-22: Storages: Added storage Local Disk (H:) (type: Logical volume, path: \\.\H:).
[I] 20:52:01 2026-01-22: VFS: Detected Ext2/3/4 file system at offset 0 of Local Disk (H:).
[I] 20:52:04 2026-01-22: Storages: Added storage Local Disk (I:) (type: Logical volume, path: \\.\I:).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
.....(protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 4103 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 64 (protocol SYS, error 0x01B1).
...[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 39 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 16 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 17 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 18 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 19 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 20 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 21 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 22 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 23 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 264 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 265 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 266 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 267 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 268 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 269 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 270 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 271 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 272 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 273 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 274 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 275 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 276 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 277 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 278 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 279 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 280 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 281 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 282 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 283 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 284 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 285 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 286 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 287 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 288 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 289 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 290 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 291 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 292 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 293 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 294 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 295 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 296 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 297 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 298 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 299 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 300 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 301 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 302 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 303 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 304 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 305 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 306 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 307 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 308 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 309 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 310 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 311 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 312 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 313 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 314 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 315 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 316 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 317 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 318 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 319 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 320 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 321 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 322 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 323 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 324 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 325 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 326 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 327 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 328 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 329 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 330 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 331 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 332 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 333 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 334 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 335 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 336 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 337 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 338 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 339 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 340 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 341 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 342 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 343 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 344 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 345 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 346 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 347 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 348 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 349 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 350 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 351 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 352 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 353 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 354 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 355 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 356 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 357 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 358 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 359 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 360 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 361 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 362 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 363 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 364 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 365 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 366 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 367 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 368 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 369 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 370 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 371 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 372 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 373 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 374 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 375 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 376 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 377 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 378 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 379 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 380 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 381 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 382 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 383 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 384 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 385 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 386 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 387 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 388 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 389 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 390 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 391 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 392 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 393 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 394 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 395 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 396 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 397 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 398 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 399 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 400 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 401 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 402 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 403 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 404 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 405 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 406 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 407 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 408 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 409 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 410 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 411 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 412 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 413 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 414 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 415 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 416 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 417 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 418 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 419 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 420 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 421 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 422 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 423 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 424 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 425 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 426 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 427 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 428 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 429 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 430 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 431 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 432 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 433 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 434 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 435 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 436 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 437 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 438 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 439 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 440 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 441 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 442 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 443 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 444 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 445 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 446 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 447 (protocol SYS, error 0x0037).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 448 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 449 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 450 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 451 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 452 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 453 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 454 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 455 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 456 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 457 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 458 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 459 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 460 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 461 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 462 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 463 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 464 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 465 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 466 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 467 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 468 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 469 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 470 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 471 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 472 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 473 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 474 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 475 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 476 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 477 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 478 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 479 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 480 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 481 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 482 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 483 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 484 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 485 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 486 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 487 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 488 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 489 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 490 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 491 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 492 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 493 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 494 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 495 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 496 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 497 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 498 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 499 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 500 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 501 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 502 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 503 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 504 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 505 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 506 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 507 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 508 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 509 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 510 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 511 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 34 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 24 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 0 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060240 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060241 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060242 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060243 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060244 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060245 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060246 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 1060247 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262144 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262145 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262146 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262147 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262148 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262149 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262150 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 262151 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786432 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786433 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786434 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786435 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786436 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786437 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786438 (protocol SYS, error 0x01B1).
[E] 20:52:29 2026-01-22: IO: Read failed from Local Disk (I:) at LBA 786439 (protocol SYS, error 0x01B1).
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\J:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\K:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\L:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\M:.
[W] 20:52:29 2026-01-22: Storages: Failed to open \\.\N:.

youngluoyang · 2026 年 1 月 24 日午前 2:38

作動中のRAID 1アレイからディスクをNASから取り外し、UFS-Proを使ってアクセスしようとしましたが、ディスクはやはり読み込めませんでした。この2TBのディスクはRAID 1アレイに統合されていたため、認識されません。

NASから取り外したRAID 1ディスク上のファイルにアクセスするにはどうすればよいですか？

youngluoyang · 2026 年 1 月 24 日午前 4:18

ディスクをNASに再接続し、NASを再起動しましたが、認識されません、うっかり…。

lvm情報ではディスクが見えています。しかし、Webサイトではマウントされていません。どうやってマウントすればいいですか？

残念ながら、マウントポイントが分かりません。

[admin@NAS4F3A03 ~]# pvscan
  PV /dev/md1   VG vg1raid1        lvm2 [9.09 TiB / 0    free]
  PV /dev/md3   VG vg16t           lvm2 [16.36 TiB / 0    free]
  Total: 2 [25.45 TiB] / in use: 2 [25.45 TiB] / in no VG: 0 [0   ]
[admin@NAS4F3A03 ~]# vgscan
  Reading all physical volumes.  This may take a while...
  Found volume group "vg1raid1" using metadata type lvm2
  Found volume group "vg16t" using metadata type lvm2
[admin@NAS4F3A03 ~]# lvscan
  inactive          '/dev/vg1raid1/tp1' [8.93 TiB] inherit
  inactive          '/dev/vg1raid1/lv1' [8.93 TiB] inherit
  inactive          '/dev/vg1raid1/lv1312' [952.00 MiB] inherit
  inactive          '/dev/vg1raid1/lv544' [92.11 GiB] inherit
  inactive          '/dev/vg16t/lv546' [144.00 GiB] inherit
  inactive          '/dev/vg16t/lv3' [16.22 TiB] inherit
[admin@NAS4F3A03 ~]# df -hT
Filesystem           Type            Size      Used Available Use% Mounted on
none                 tmpfs         163.0M    118.3M     44.7M  73% /
devtmpfs             devtmpfs        7.9G     64.0K      7.9G   0% /dev
tmpfs                tmpfs          64.0M      5.0M     59.0M   8% /tmp
tmpfs                tmpfs           7.9G      2.3M      7.9G   0% /dev/shm
tmpfs                tmpfs          16.0M    128.0K     15.9M   1% /share
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/snapshot/export
/dev/md9             ext3          493.5M    418.1M     75.3M  85% /mnt/HDA_ROOT
cgroup_root          tmpfs           7.9G         0      7.9G   0% /sys/fs/cgroup
/dev/md13            ext4          417.0M    339.5M     77.5M  81% /mnt/ext
tmpfs                tmpfs          32.0M     27.3M      4.8M  85% /samba_third_party
/dev/ram2            ext2          193.7M      1.5M    192.2M   1% /mnt/update
tmpfs                tmpfs          64.0M     28.2M     35.8M  44% /samba
tmpfs                tmpfs          48.0M    832.0K     47.2M   2% /samba/.samba/lock/msg.lock
tmpfs                tmpfs          16.0M         0     16.0M   0% /mnt/ext/opt/samba/private/msg.sock
tmpfs                tmpfs         160.0M         0    160.0M   0% /tmp/wfm

OneCD · 2026 年 1 月 24 日午前 4:22

QNAPにサポートチケットを作成しましたか？

youngluoyang · 2026 年 1 月 24 日午前 5:24

はい、しかしそれらは技術的なものではありません。

OneCD · 2026 年 1 月 24 日午前 5:28

レベル1のテクニカルサポートを突破するのは大変なことがあります。

もしかしたら @SteveKo が、あなたのチケットをより適切な担当者にエスカレーションしてくれるかもしれませんね😉

youngluoyang · 2026 年 1 月 24 日午前 5:33

今、私の全ディスクがオフラインになってしまいました。しかし、ディスクの内容がここにあることは分かっています。

NA9D · 2026 年 1 月 25 日午前 4:02

一人で勝手に進めるのはやめてください！QNAPサポートにチケットのエスカレーションを依頼すれば、きちんと対応してもらえます。サポートスタッフはとても優秀です。少し辛抱強くなって、ポータルでしっかり問い合わせを続けてください。

SteveKo · 2026 年 1 月 25 日午前 9:24

すでにサポートチケット番号をお持ちの場合は、お知らせください。ありがとうございます！
